Wegsensoren von ASMpm-MB / posimag® lin Magnetband-Sensoren

Produkt-Ansicht

EME Nr.: 038767 Art. Nr.: PMIB3-20-M-300-R1-FP

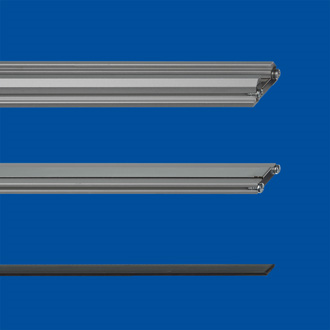

PMIB3 Magnetband

Hersteller:

ASM

Spezifikation:
Messlänge: 300 mm
Trägermaterial: CrNi 17 7 Edelstahlträgerband rostfrei
Montageart / Lieferumfang: Montiert auf Flachprofil
Linearität bei 25°C: bis 30 m: ±40 µm/m / bis 50 m: ±80 µm/m
Profil: Magnetisches Maßband im Flachprofil
Lagerbestand:
Wiederbeschaffungsfrist:
Verpackungseinheit:
0 Stk.
Ab Zentrallager
1 Stk.
Staffelpreise:
Stück Preis
1 CHF 137.00
3 CHF 117.00
6 CHF 109.00
10 CHF 105.00
20 CHF 99.00
Preis pro Stück: CHF 137.00
Gesamtpreis: CHF 137.00 Preis exkl. MwSt.
und Versandkosten
CHF 148.10 Preis inkl. MwSt.
excl. Versandkosten
Menge:
- +

In den Warenkorb

Spez. Preis
Datenblätter:
Datenblatt (DE)
