EME No.: 045080 Part No.: TRM250TRM250000000

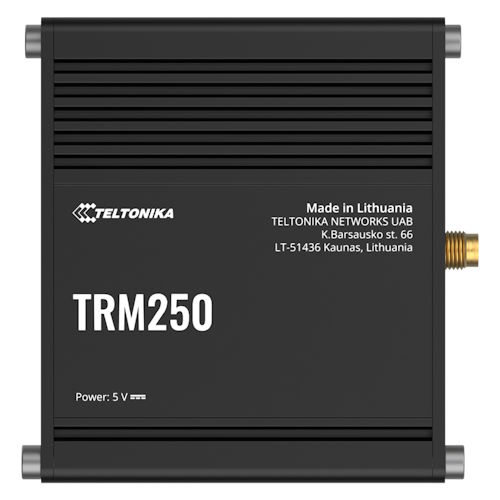

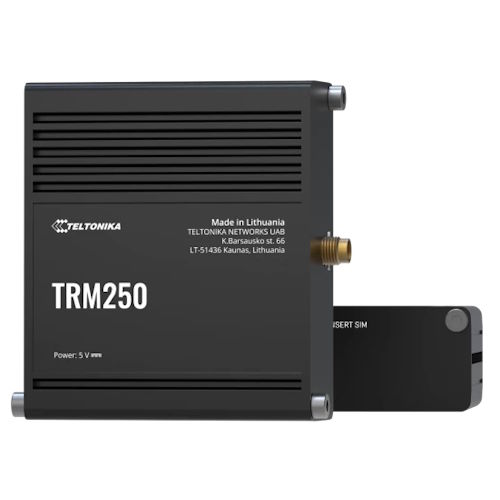

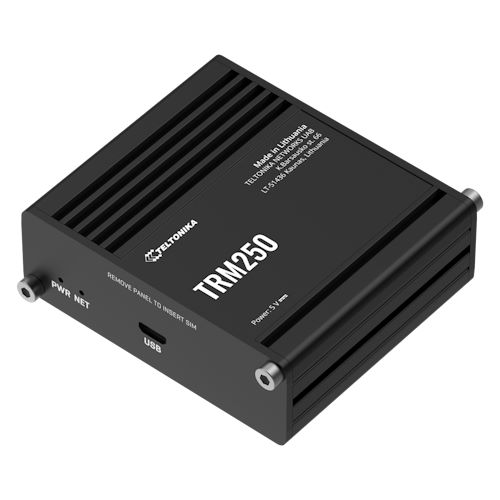

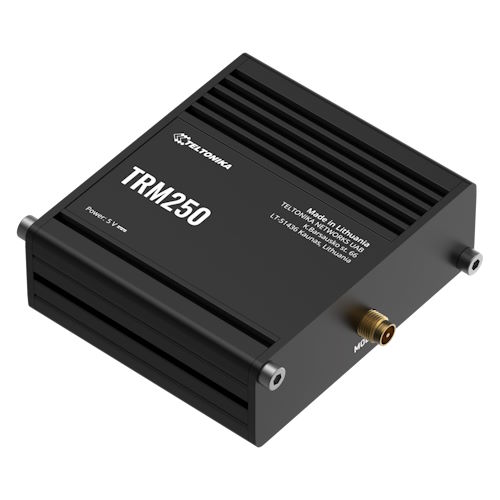

TRM250 Industrial Cellular Modem

Manufacturer:

TELTONIKA

Specification:

TRM250 is an industrial cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1 and is backwards compatible with EGPRS (2G). It offers extremely long runtime, low power consumption.

EAN/GTIN:

4779027312781

Stock:
Replacement period:
Packing Unit:

0 Stk.
From central warehouse

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 57.30
10	CHF 55.90
25	CHF 55.20
50	CHF 53.90

Price per piece:

CHF 57.30

Total price:

CHF 57.30 Price excl. VAT
and shipping costs

CHF 61.94 Price incl. VAT
excl. Shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Documentaries:

Quick Start Guide

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

KONNEKTIVITÄT

4G/LTE (Cat M1), NB-IoT, 2G

KOMPAKTHEIT & HALTBARKEIT

Kleine Größe, einfache Installation

USB

Schnittstelle für den Internetzugang

EXTERNE ANTENNE

Für Bereitstellungsflexibilität

Power

Connector
microUSB
Input voltage range
5V - powered via microUSB
Power consumption
3.6 W Max

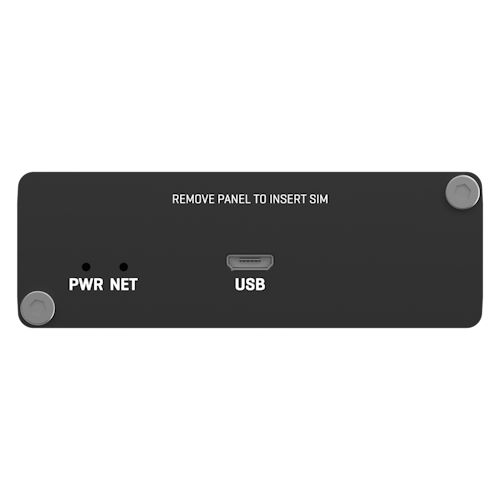

Physical Interfaces

Status LEDs
1 x Power LED, 1 x Network LED, 1 x LTE LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1x microUSB

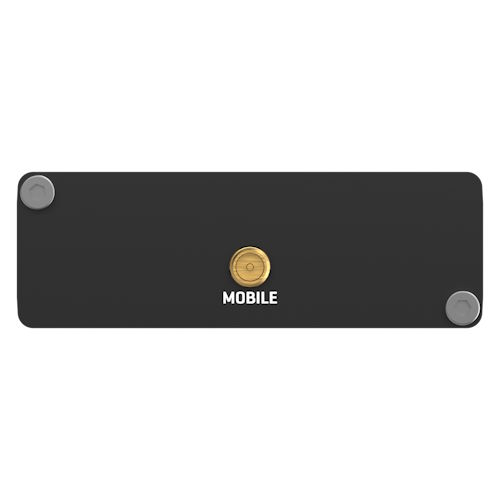

Antennas
1 x SMA for LTE

Physical Specification

Casing material
Full aluminum housing
Dimensions (W x H x D)
74.5 x 25 x 64.5 m
Weight
131 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

TRM SOFTWARE

Management Software
Windows Connection Manager (NDIS driver)
USB Driver
Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver
Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver
Windows 7/8/8.1/10
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
Linux Driver
3.x (3.4 and later)/4.1~4.14

Regulatory & Type Approvals

Regulatory
CE, UKCA, EAC, UCRF, Kenya

Mobile

Mobile module
4G LTE Cat M1 up to 375 DL/375 UL kbps; Cat NB1 up to 32 DL/70 UL kbps; 2G up to 296 DL/ 236.8 UL kbs
