Industrielle Netzwerke Teltonika Networks TEL-Router / Router

Teltonika NetworksTEL-Router / Router

Produkt-Ansicht

EME Nr.: 045087 Art. Nr.: RUT241010000

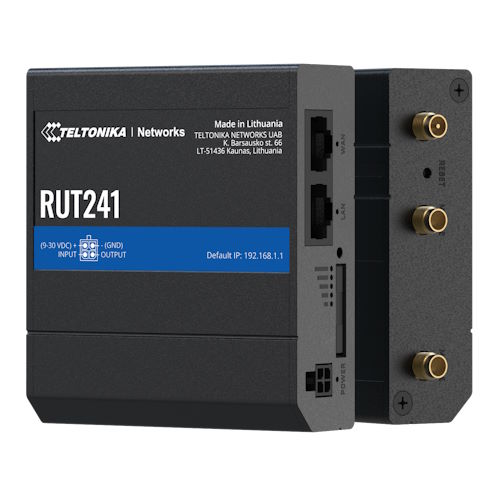

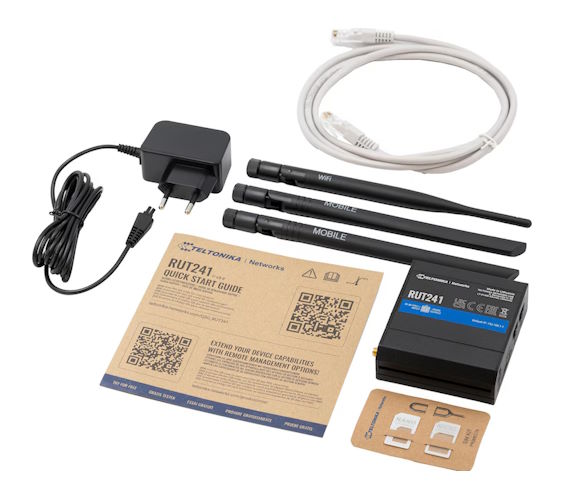

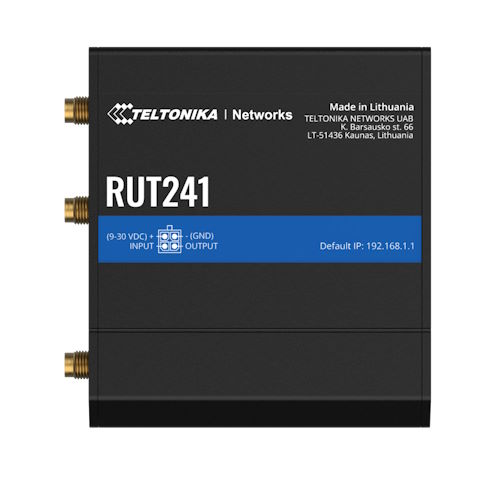

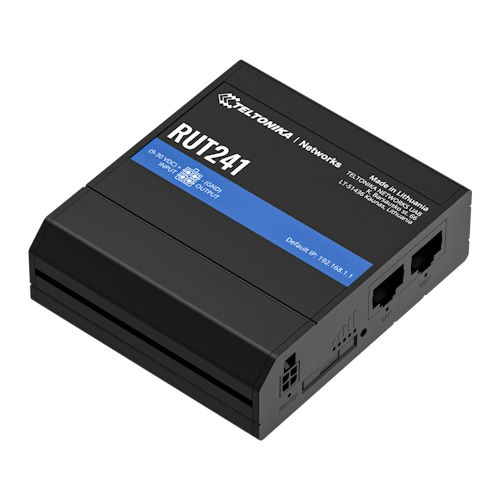

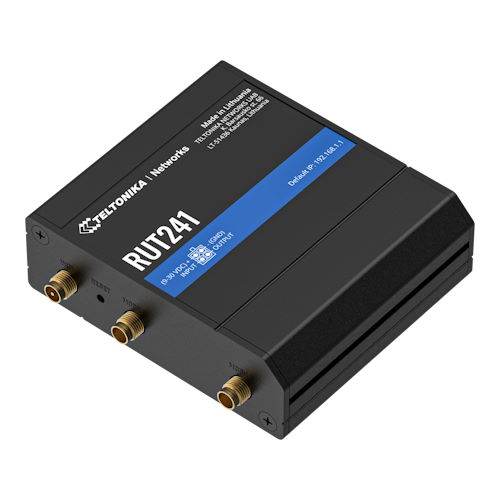

RUT241 Industrieller Mobilfunk-Router

Hersteller:

TELTONIKA

Spezifikation:

Ausgerüstet mit 4G LTE, Wi-Fi und zwei Ethernet-Anschlüssen, bietet dieser Router eine ununterbrochene Verbindung mit einem Backup durch automatisches Failover. Industrielles Design, kompakte Größe, mehrere Anschlussschnittstellen und Kompatibilität mit RMS machen dieses Gerät zu einer hervorragenden Wahl für zahlreiche IoT- und M2M-Lösungen.

EAN/GTIN:

4779051840151

Lagerbestand:
Wiederbeschaffungsfrist:
Verpackungseinheit:

5 Stk.
An Lager

1 Stk.

Staffelpreise:

Stück	Preis
1	CHF 135.50
10	CHF 133.90
25	CHF 132.40
50	CHF 130.90

Preis pro Stück:

CHF 135.50

Gesamtpreis:

CHF 135.50 Preis exkl. MwSt.
und Versandkosten

CHF 146.48 Preis inkl. MwSt.
excl. Versandkosten

Menge:

- +

In den Warenkorb

Spez. Preis

Datenblätter:

Datenblatt

Broschüren:

Broschüre

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link zur Herstellerseite

Beschreibung Eigenschaften Technische Daten

Konnektivität

4G LTE (Cat 4), 3G, 2G

WI-FI

Wireless Access Point mit Hotspot-Funktionalität

WAN FAILOVER

Automatischer Wechsel zu einer verfügbaren Backup-Verbindung

RMS

Für Fernverwaltung, Zugang und VPN-Services

System Characteristics

CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB, SPI Flash

Input / Output

Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events
Email, RMS, SMS
I/O juggler
Allows to set certain I/O conditions to initiate event

Power

Connector
4-pin industrial DC power socket
Input voltage range
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
< 6.5 W Max

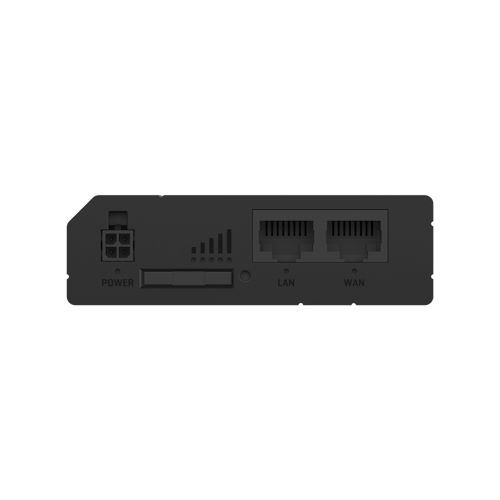

Physical Interfaces

Ethernet
2 x RJ45 ports, 10/100 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power
1 x 4-pin power connector
Antennas
2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset
Reboot/User default reset/Factory reset button

Physical Specification

Casing material
Aluminium housing, plastic panels
Dimensions (W x H x D)
83 x 25 x 74 mm
Weight
125 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118
Operator
AT&T, Verizon, T-Mobile, Uscellular

Mobile

Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release
Release 10/11 depending on the hardware version
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list
Operator black/white list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LA
Passthrough
Router assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
SSID/ESSID
SSID stealth mode and access control based on MAC address
Wi-Fi users
Up to 50 simultaneous connections
Wireless Connectivity Features
Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter
Whitelist, blacklist
Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information.

Ethernet

WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectio
Firewall
Port forward, traffic rules, custom rules
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
SSHFS
Possibility to mount remote file system via SSH protocol

Security

Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN
Port and tag-based VLAN separation
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control
Flexible access control of SSH, Web interface, CLI and Telne

VPN

OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE
GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN
Method of building scalable IPsec VPNs
SSTP
SSTP client instance support
ZeroTier
ZeroTier VPN client support
WireGuard
WireGuard VPN client and server support
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

Supported modes
Client, Server
Supported connection types
TCP

MODBUS

Supported modes
Server, Client
Supported connection types
TCP
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server
Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes
Station, Outstation
Supported connection
TCP

DLMS

DLMS Support
DLMS - standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP

API

Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT
MQTT Broker, MQTT publisher
SNMP
SNMP (v1, v2, v3), SNMP Trap
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)

IoT Platforms

Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

Firmware / Configuration

WEB UI
pdate FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
