EME No.: 045107 Part No.: TSW010TSW010000000

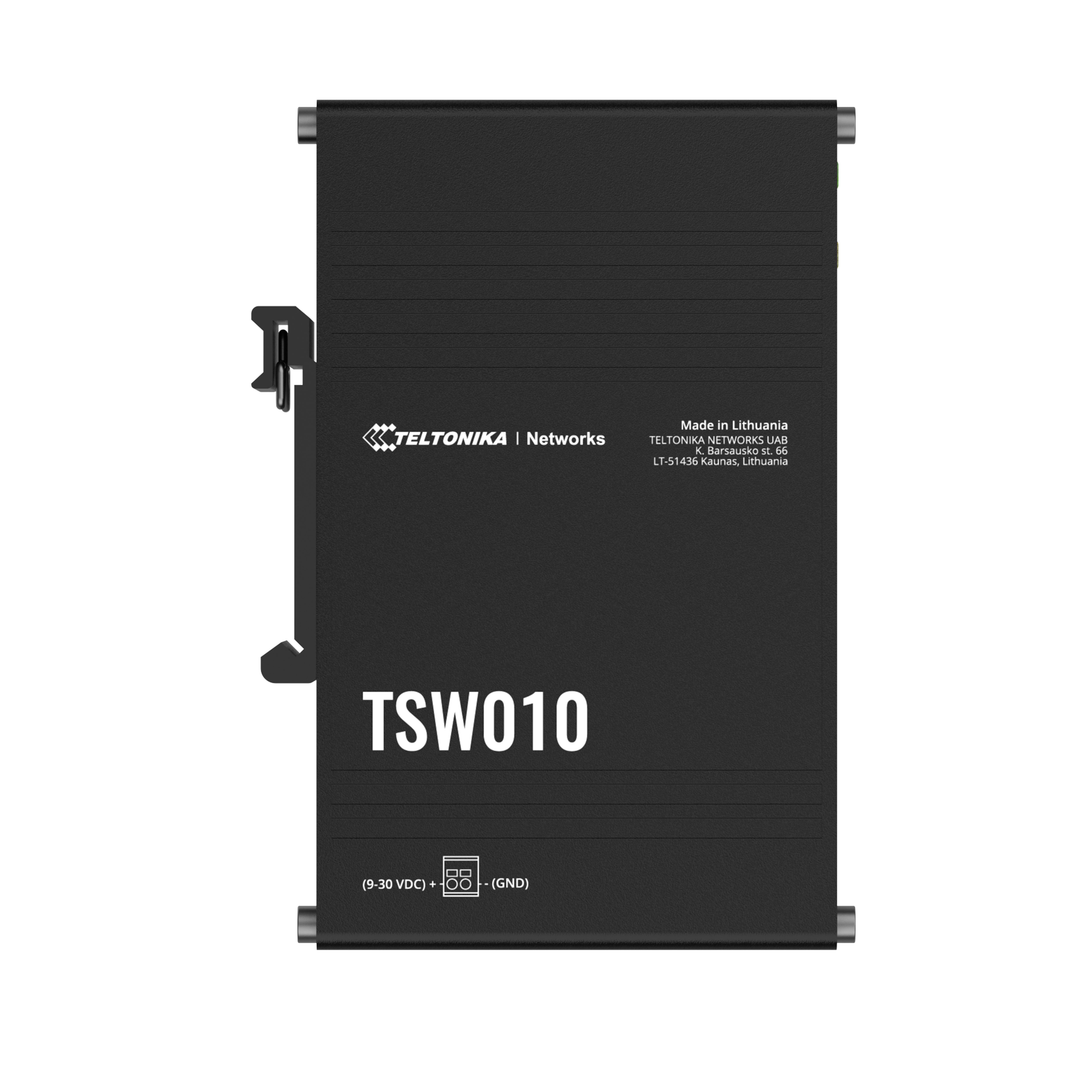

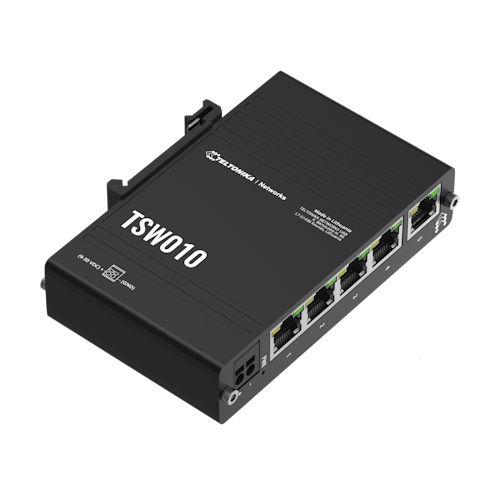

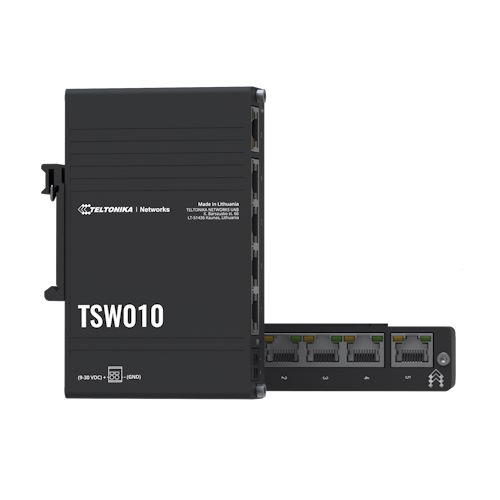

TSW010 5-port 100 Mbps Switch mit DIN Rail

Manufacturer:

TELTONIKA

Specification:

The TSW010 Ethernet switch provides the most cost-effective way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

EAN/GTIN:

4779051840274

Stock:
Replacement period:
Packing Unit:

2 Stk.
In stock An Lager

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 19.40
10	CHF 19.20
25	CHF 19.00
50	CHF 18.70

Price per piece:

CHF 19.40

Total price:

CHF 19.40 Price excl. VAT
and shipping costs

CHF 20.97 Price incl. VAT
excl. Shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

PLUG AND PLAY

Keine Konfiguration erforderlich

ETHERNET

5 x Ethernet mit Geschwindigkeiten bis zu 100 Mbps

MONTAGE

Integrierte DIN-Schienenhalterung und Aufputzmontageoptionen

INDUSTRIELLES DESIGN

Robustes Aluminiumgehäuse

Performance Specifications

Bandwidth (Non-blocking)
1 Gbps
MAC address table size
2K entries
Jumbo frame support
2048 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
9 – 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: 0.3 W / Max: 0.9 W

Physical Interfaces

Ethernet

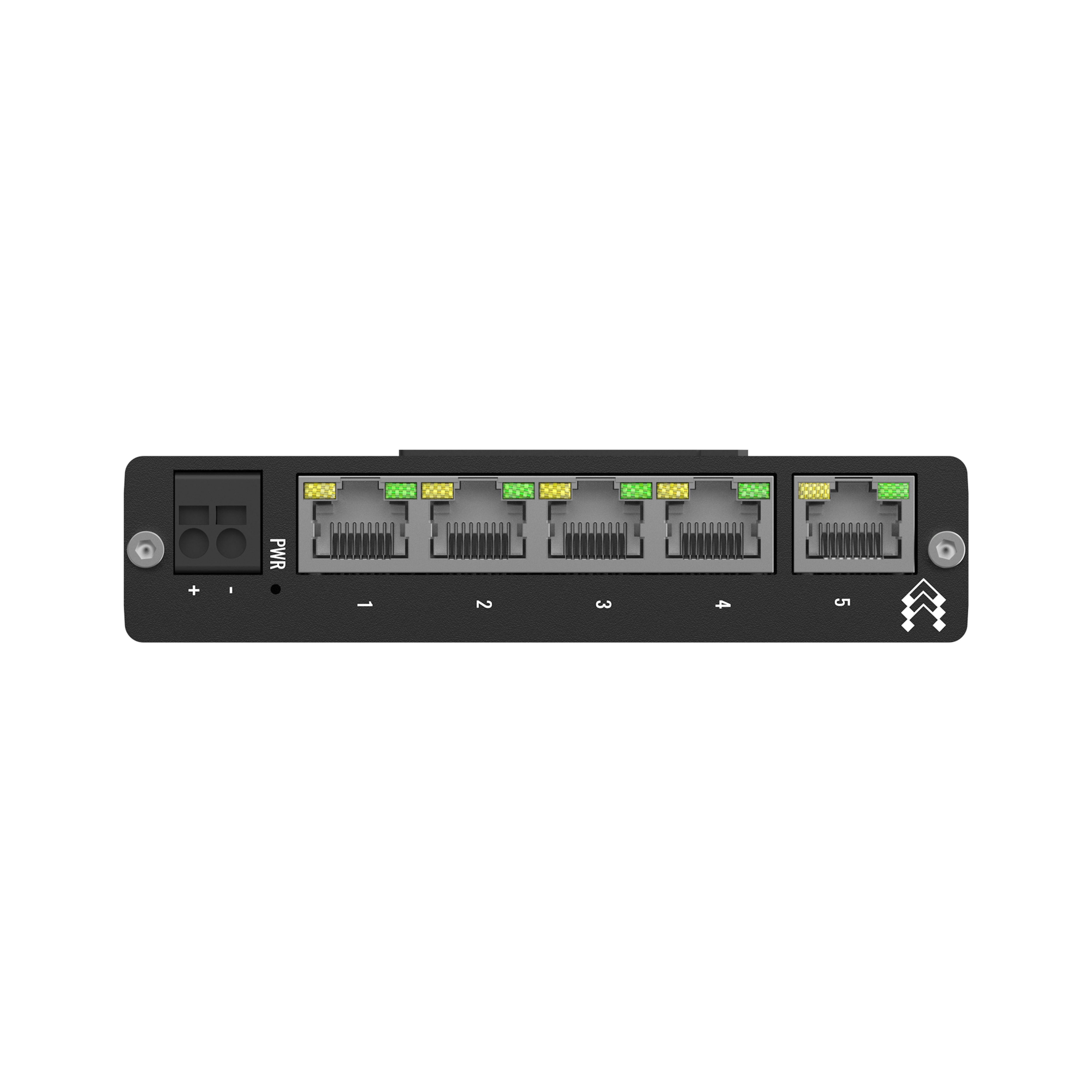

5 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket

Physical Specification

Casing material
Full aluminum housing
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
Weight
147 g
Mounting options

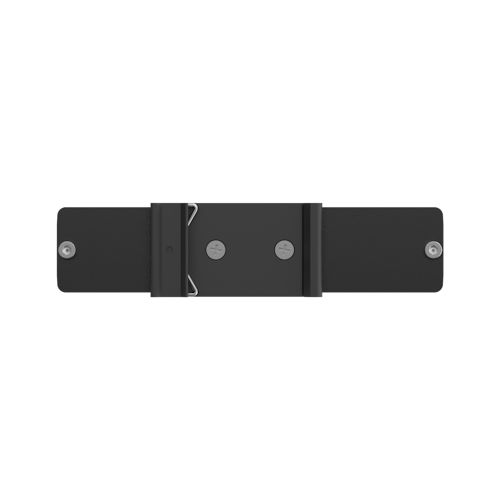

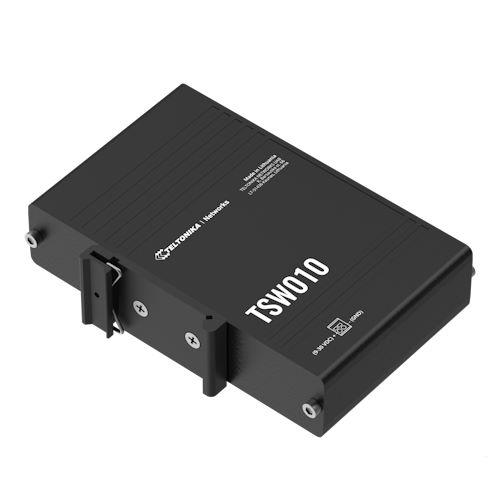

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE

Ethernet

ETH
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3x, 802.3az
