EME No.: 045111 Part No.: TSW200 TSW200000010

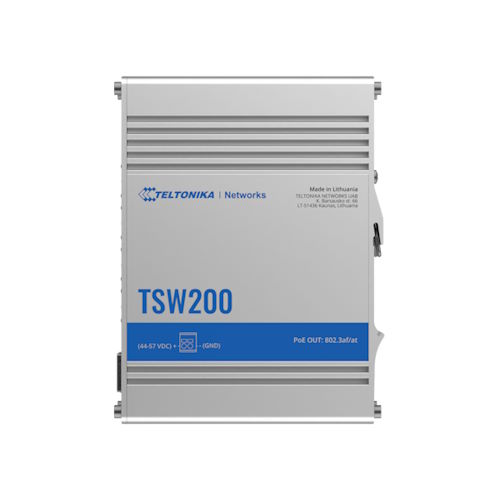

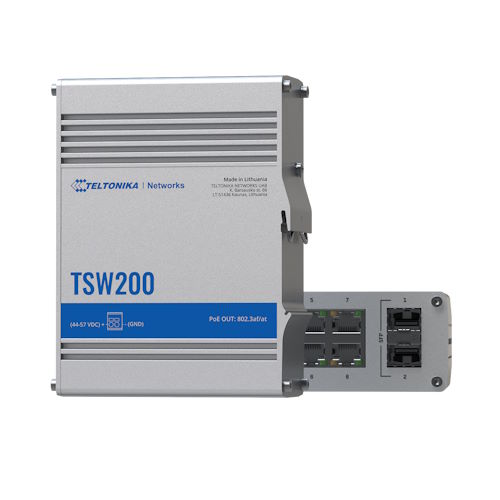

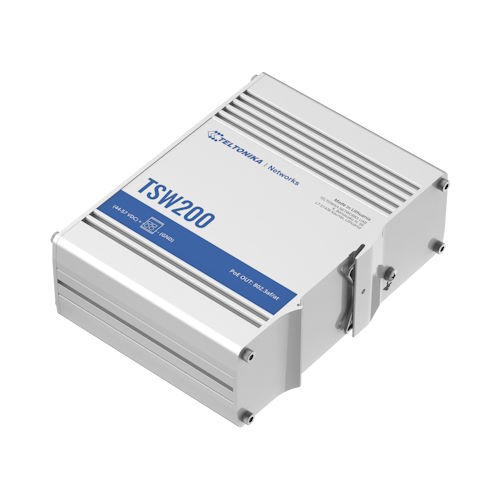

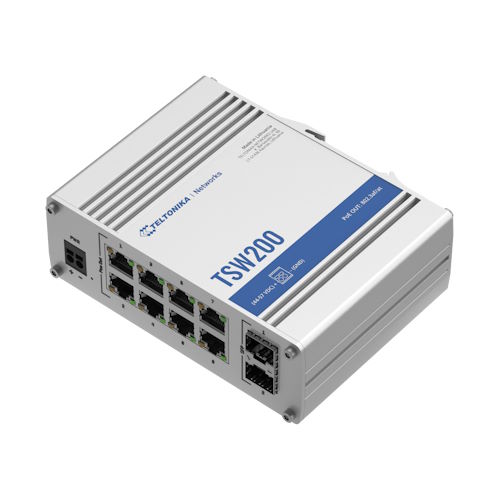

TSW200 Industrial PoE+ Ethernet Switch

Manufacturer:

TELTONIKA

Specification:

TSW200 is an industrial Ethernet switch. The TSW200 is equipped with 2 SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports that support IEEE 803.af and IEEE 802.3at Power-over-Ethernet standards. Equipped with a power source (PSE), this device enables centralization of power supply, provides up to 30 watts per port and reduces the effort required to install power.

EAN:

4779051840120

Stock:
Replacement period:
Packing Unit:

0 Stk.
From central warehouse Ab Zentrallager

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 87.95
5	CHF 84.45
10	CHF 80.90

Price per piece:

CHF 87.95

Total price:

CHF 87.95 Price excl. VAT
and shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

SFP

2 x SFP-Anschlüsse für Glasfaserkabel mit großer Reichweite

PoE+

8 x Gigabit Ethernet mit Geschwindigkeiten bis zu 1000 Mbps

LEISTUNGSBUDGET

Leistungsbudget für PSE bis zu 240 W

ETHERNET

8 x Gigabit Ethernet mit Geschwindigkeiten bis zu 1000 Mbps

Performance Specifications

Bandwidth (Non-blocking)
20 Gbps
Packet buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

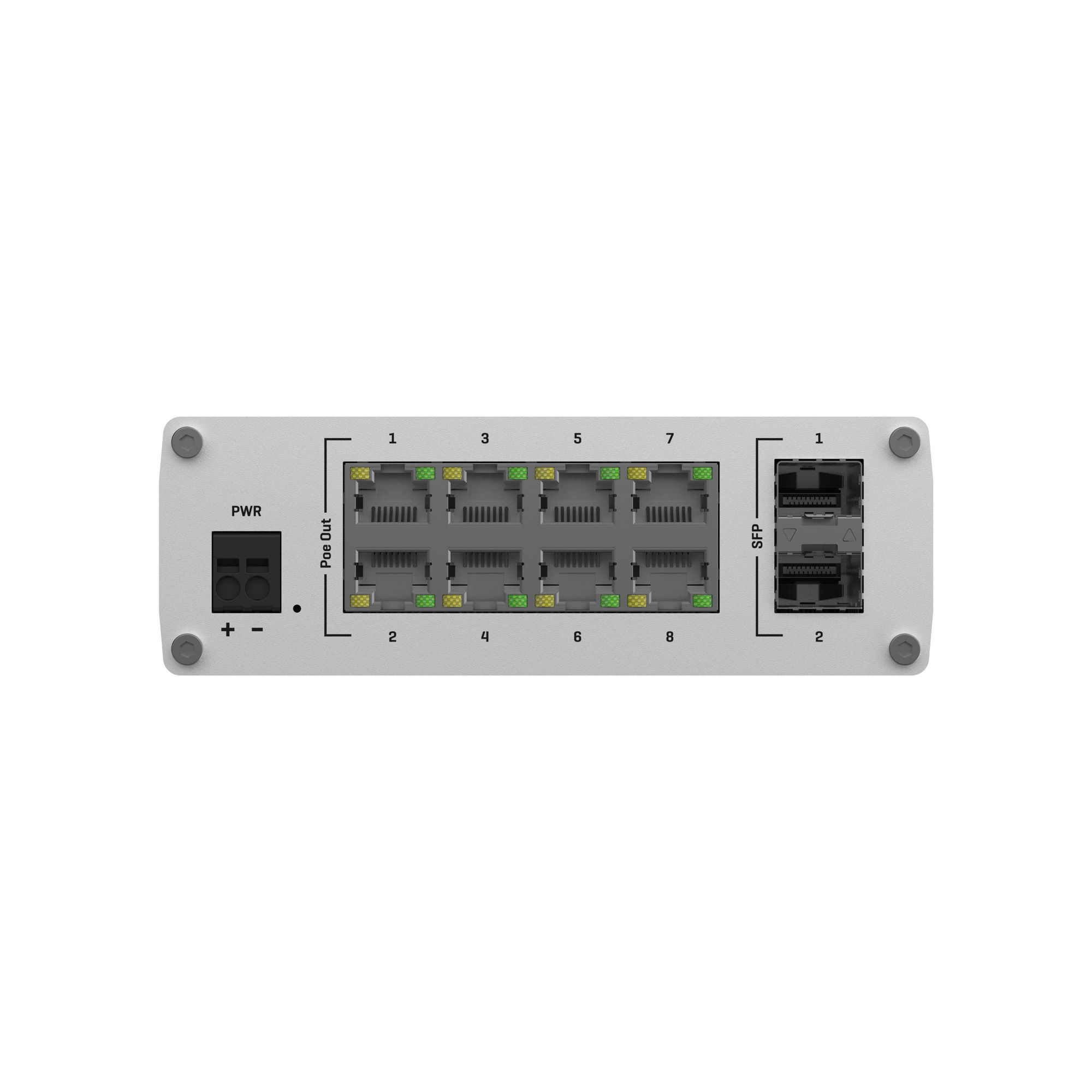

Physical Interfaces

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Other

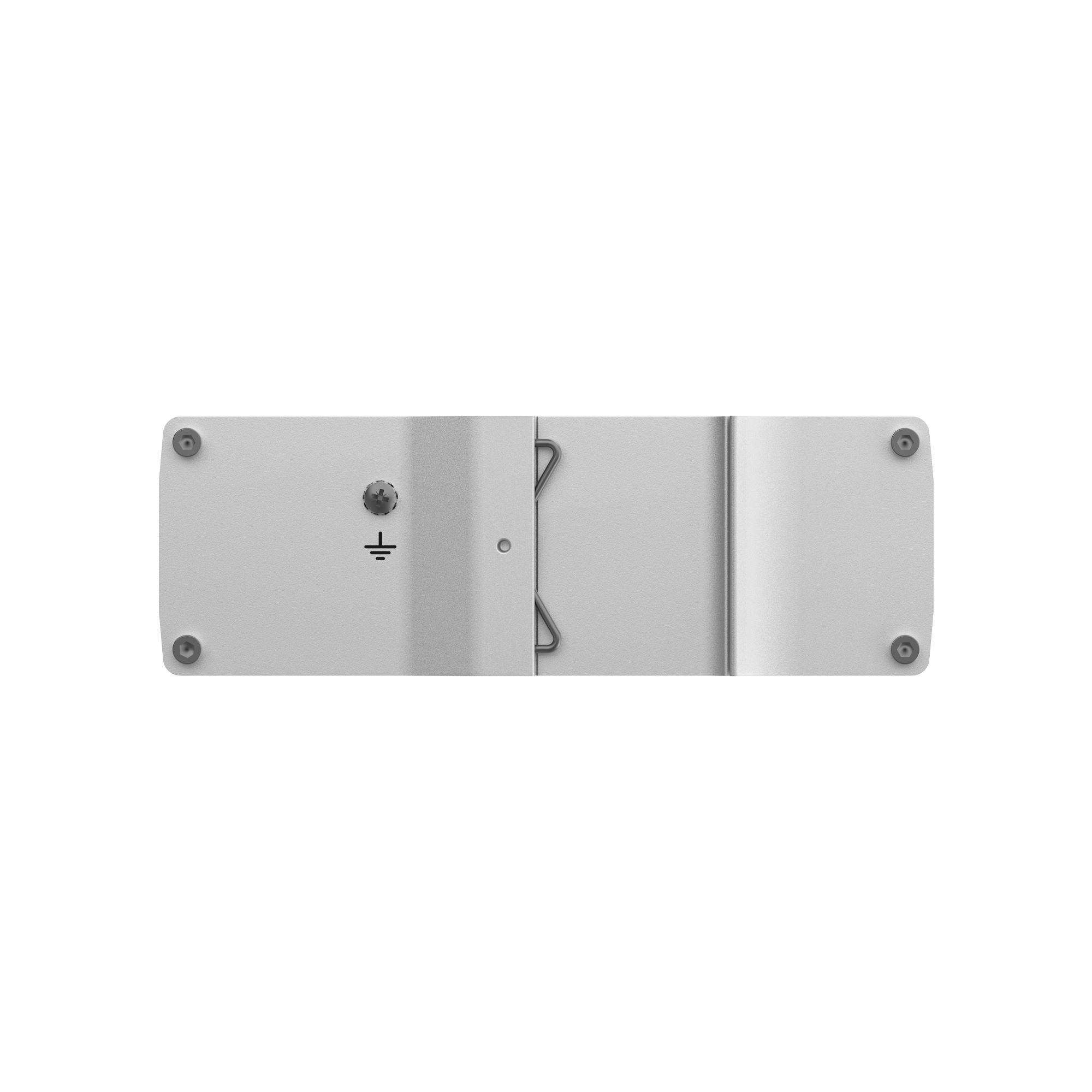

1 x Grounding screw

Physical Specification

Casing material
Full aluminum housing
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
Weight
517 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, CB

Ethernet

ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
