EME No.: 045113 Part No.: TSW101 TSW101000000

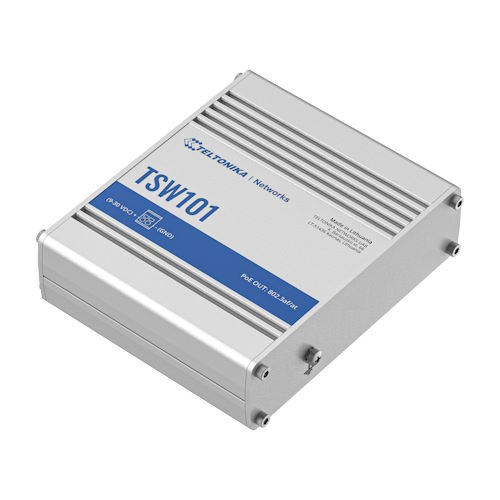

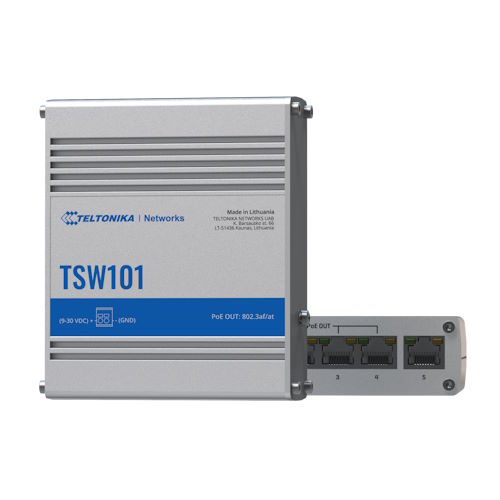

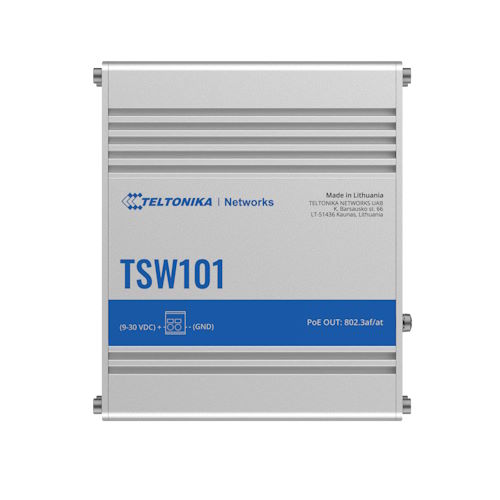

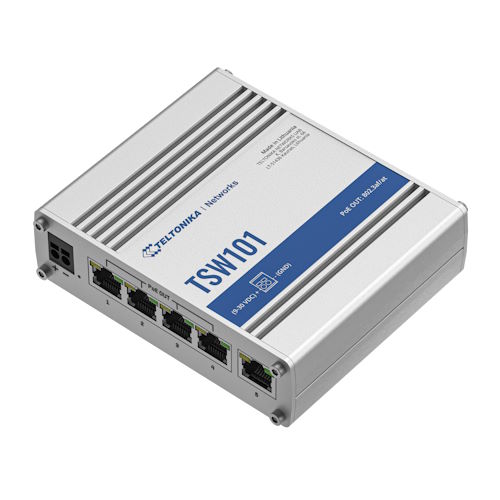

TSW101 Automotive POE+ Ethernet Switch

Manufacturer:

TELTONIKA

Specification:

The TSW101 is a plug-and-play automotive switch designed specifically for vehicles. With five Gigabit Ethernet ports, four of which support PoE+, the TSW101 can power your end devices and connect them to the Internet at the same time. This automotive switch can be powered by a 12V or 24V car battery and does not require an additional power supply.

EAN:

4779051840113

Stock:
Replacement period:
Packing Unit:

0 Stk.
From central warehouse

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 63.15
5	CHF 60.65
10	CHF 58.15

Price per piece:

CHF 63.15

Total price:

CHF 63.15 Price excl. VAT
and shipping costs

CHF 68.27 Price incl. VAT
excl. Shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

PLUG AND PLAY

Keine Konfiguration erforderlich

PoE+

4 x PoE+ Anschlüsse mit 802.3af 9-30 V und 802.3at Unterstützung

GIGABIT ETHERNET

5 x Gigabit-Ethernet-Anschlüsse mit bis zu 1000 Mbps

INDUSTRIELLES DESIGN

Robustes Aluminiumgehäuse

Performance Specifications

Bandwidth (Non-blocking)
10 Gbps
Packet buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
9 – 30 VDC
PoE-out input voltage range
9 – 30 VDC
Power consumption
Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
PSU
Stromversorgung über 12V/24V Autobatterie. Kein zusätzliches Netzteil erforderlich.

Physical Interfaces

Ethernet

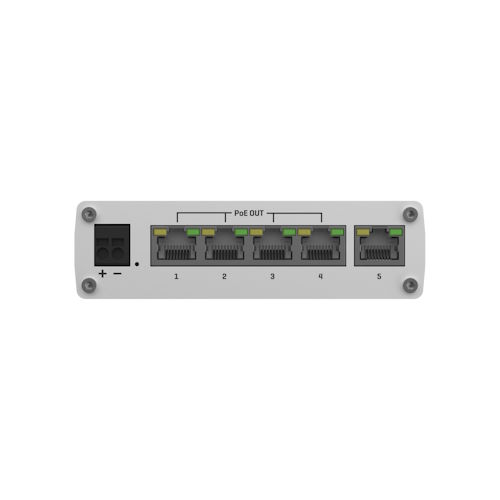

5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Other

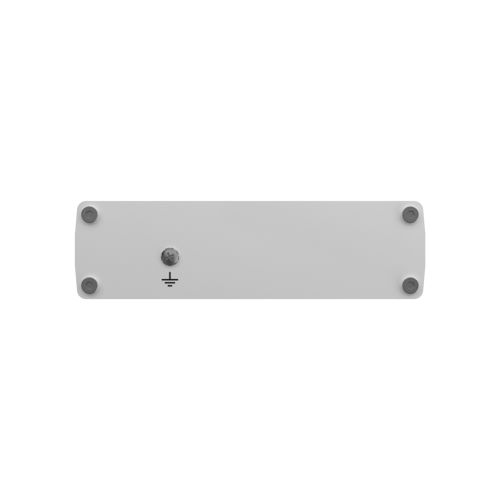

1 x Grounding screw

Physical Specification

Casing material
Full aluminum housing
Dimensions (W x H x D)
115 x 32 x 95 mm
Weight
384 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, REACH, RoHS, WEE

Ethernet

ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

PoE ports
Port 1 - 4
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
60 W
