Industrial networks Teltonika Networks TEL-Switch / Ethernet switches

Teltonika NetworksTEL-Switch / Ethernet switches

Produkt-Ansicht

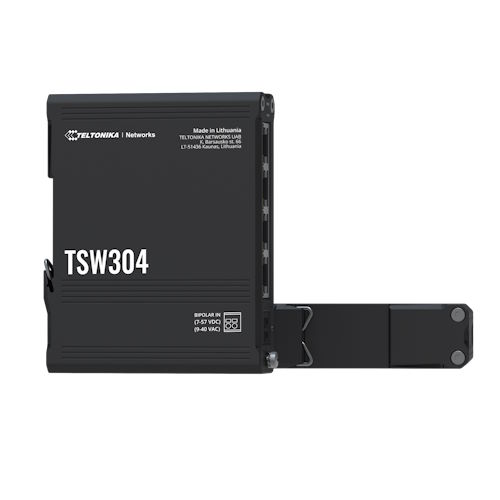

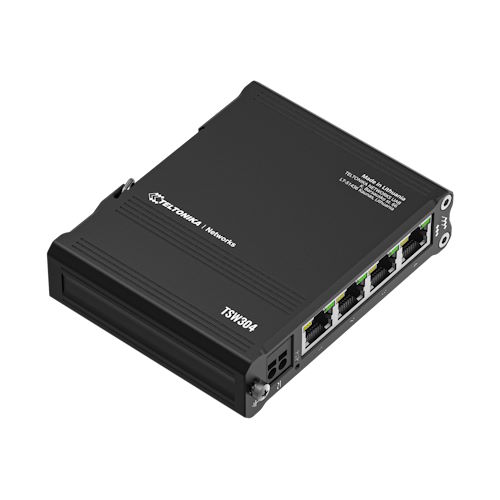

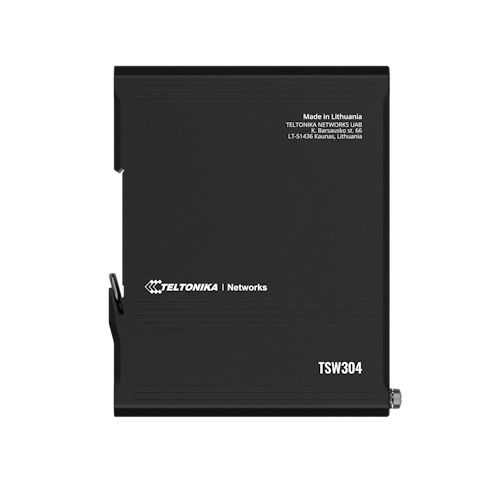

EME No.: 045114 Part No.: TSW304TSW30400B000

Manufacturer:	TELTONIKA
Specification:	Designed for easy installation, TSW304 offers compact size and shockproof housing, along with its integrated DIN mount.
EAN/GTIN:	4779051840144
Stock: Replacement period: Packing Unit:	0 Stk. From central warehouse 1 Stk.
	Price on request

Data Sheets:

Brochures:

Wiki Knowledge Base:

MONTAGE

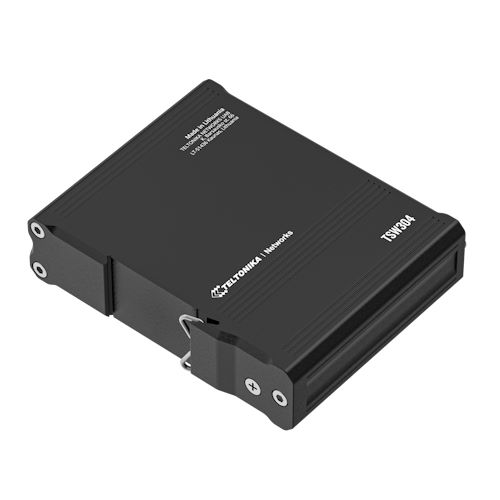

Integrierten, eingebauten DIN-Schienenhalter

KOMPAKT

102 x 25 x 81.5 mm

GIGABIT ETHERNET

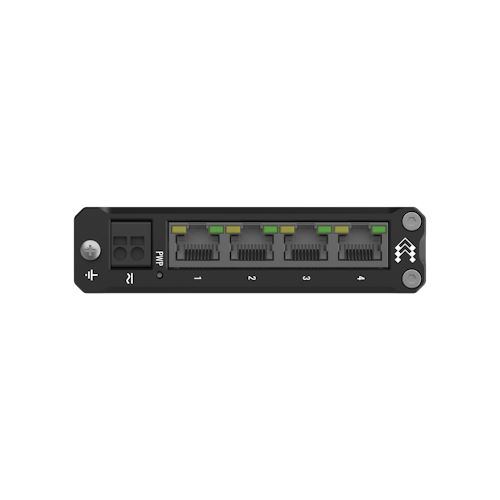

4 x Gigabit Ethernet mitGeschwindigkeiten von bis zu 1000 Mbps

7-57 V

Große Auswahl an unterstützten Versorgungsspannungen

Performance Specifications

Power

Connector
2-pin industrial DC power socket
Input voltage range
7 - 57 VDC; 9 - 40 VAC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: 0.26 W / Max: 1.44 W

Physical Interfaces

Physical Specification

Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
102 x 25 x 81.5 mm
Weight
210 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Regulatory & Type Approvals

Ethernet

ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
