EME No.: 045119 Part No.: TSW202TSW202000001

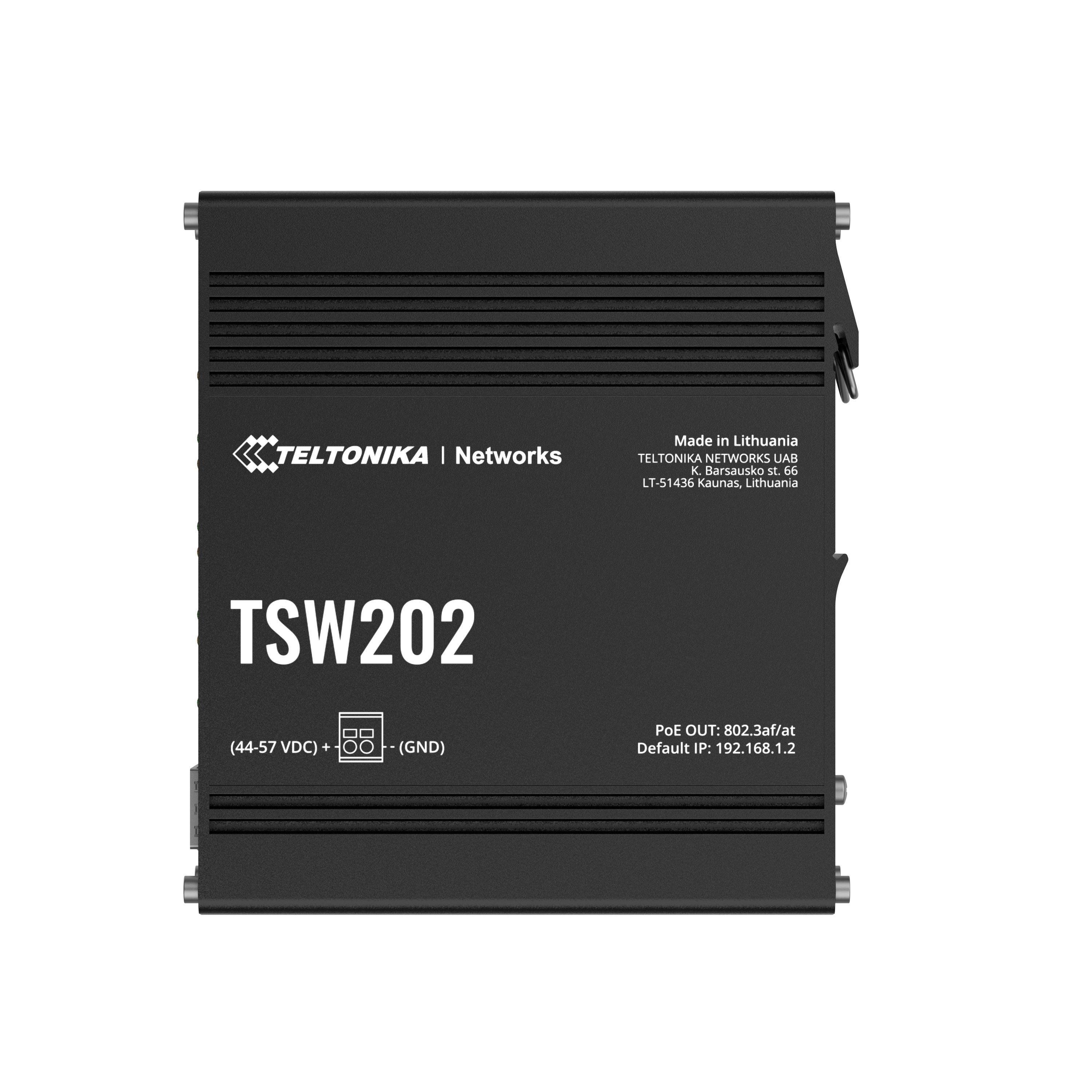

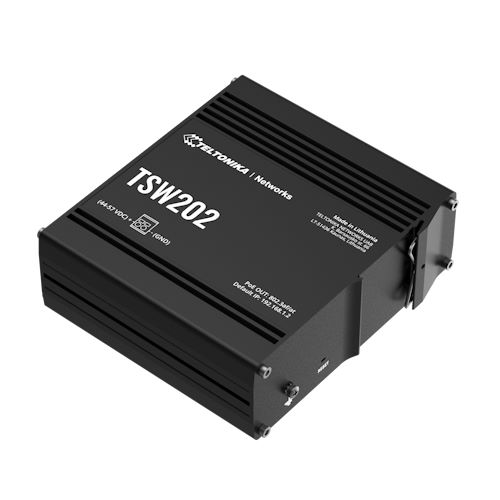

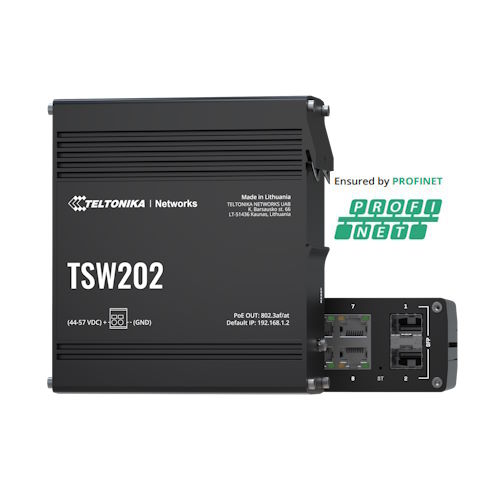

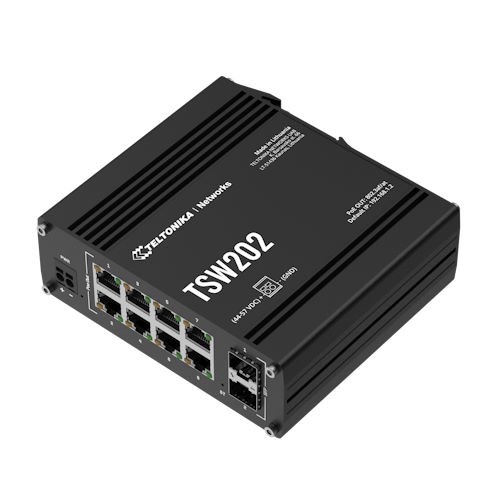

TSW202 Managed PoE+ Ethernet Switch (PROFINET, EtherNet/IP)

Manufacturer:	TELTONIKA
Specification:	The TSW202 is a managed PoE+ Ethernet switch that provides granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexible management and power delivery and supports protocols such as EtherNet/IP, PROFINET and MRP. The TSW202 features 2 SFP ports and 8 Gigabit Ethernet ports, each with 30W of power. TSW202***1, PROFINET enabled by default TSW202***0, PROFINET disabled by default
EAN/GTIN:	4779051840281
Stock: Replacement period: Packing Unit:	2 Stk. In stock 1 Stk.
	Price on request

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

MANAGED SWITCH

L2 mit zusätzlichen L3-Funktionen für erweiterte Managementmöglichkeiten

PoE+ and SFP

8-Port PoE+ Switch mit 2x SFP-Ports für Glasfaserkommunikation

PROFINET & MEHR

Unterstützt PROFINET für die automatisierte Datenverarbeitung sowie weitere Protokolle wie EtherNet/IP und MRP

WitchOS

Teltonika Networks OS für Switches, intuitiv gestaltet für unbegrenzte Konfigurationen

RMS

Kompatibel mit dem Teltonika Remote Management System

System Characteristics

RAM
128 MB, DDR3
FLASH storage
16 MB serial flash

Performance Specifications

Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W

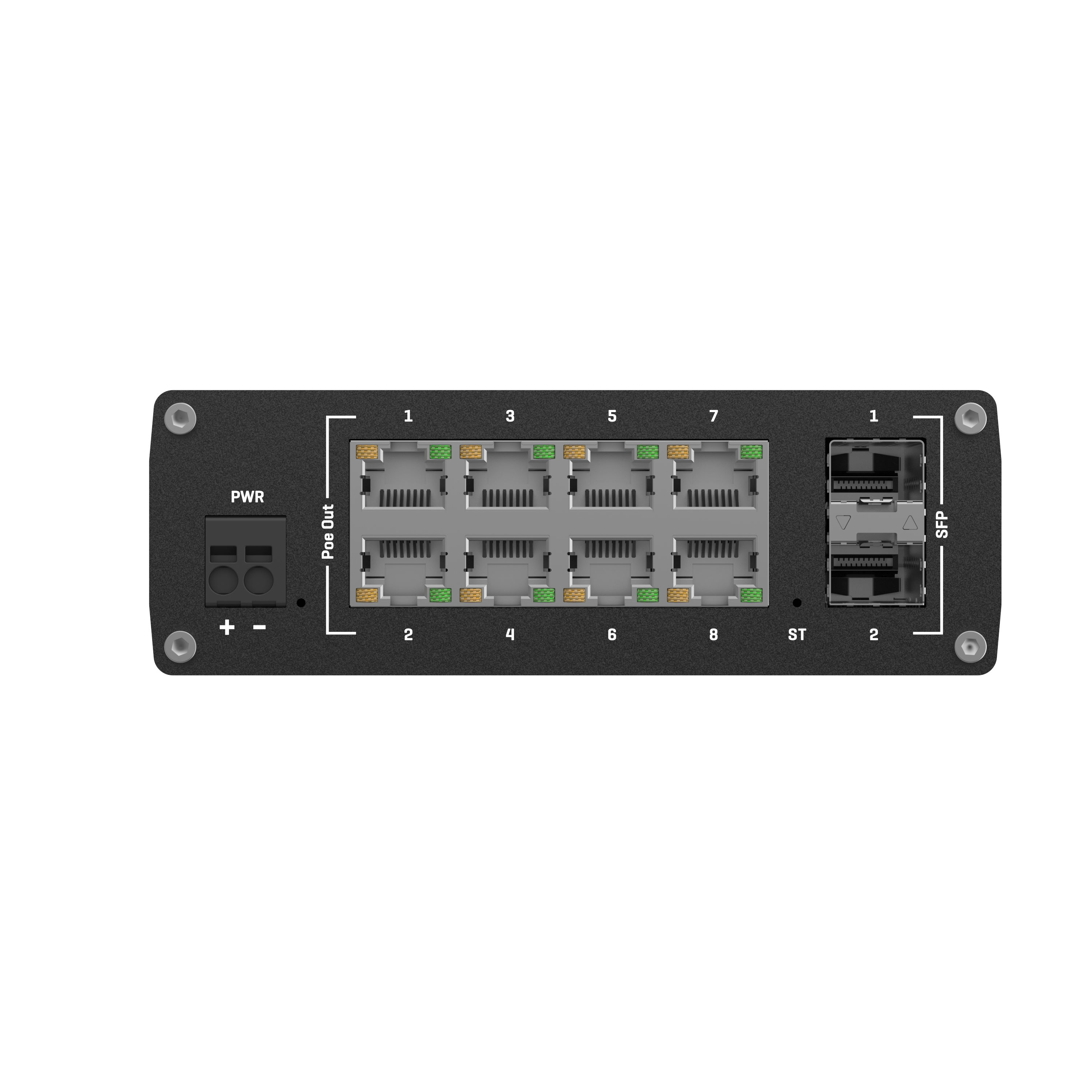

Physical Interfaces

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket

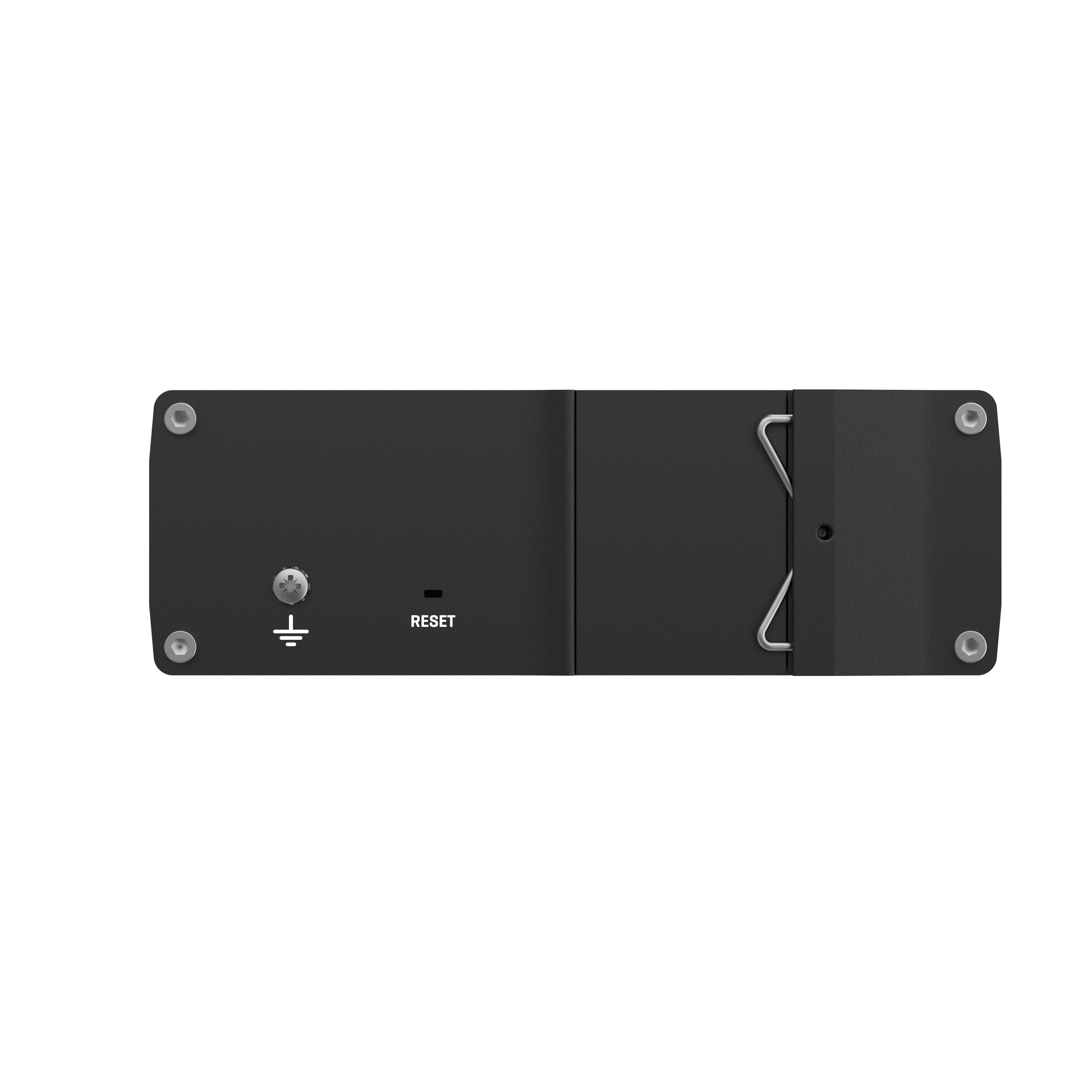

Reset
Software reset button
Other
1 x Grounding screw

Physical Specification

Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
610 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE

Ethernet

ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

POE OUT

PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
Maximum Ethernet cable length
100 m

Services

EtherNet/IP
Yes
PROFINET (class B)
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security

Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block

QoS

QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping

Diagnostics

Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port

API

Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Firmware / Configuration

WEB UI
pdate FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system
WitchOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
