EME No.: 045120 Part No.: TSW212 TSW212000001

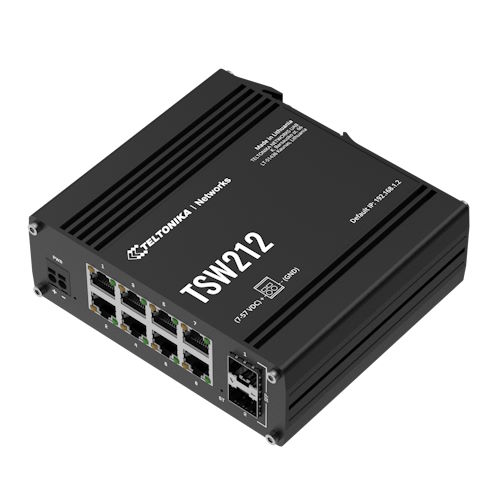

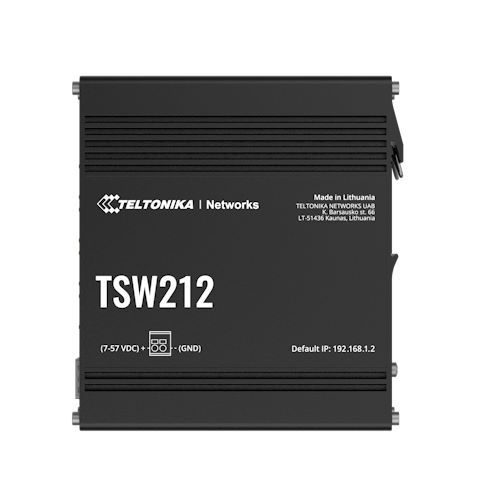

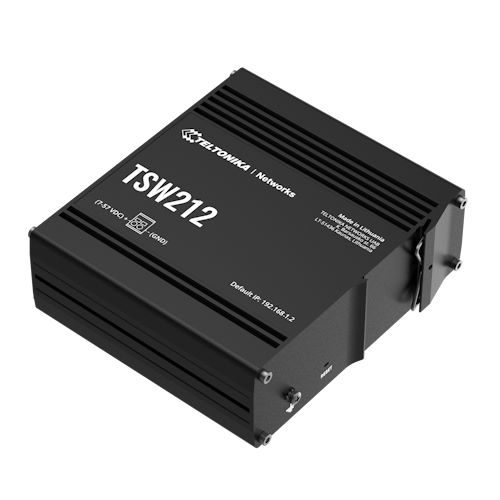

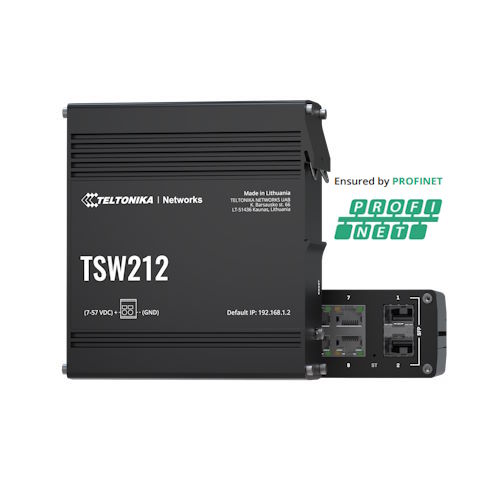

TSW212 Managed Ethernet Switch (PROFINET, EtherNet/IP)

Manufacturer:

TELTONIKA

Specification:

The TSW212 is an L2 managed Ethernet switch with additional L3 features such as DHCPv6 client support and static IPv6 routing. This switch supports protocols such as EtherNet/IP, PROFINET and MRP and features 8 Gigabit Ethernet ports and 2 SFP ports for robust long-range fiber optic communications.

TSW212*****1, PROFINET enabled by default
TSW212*****0, PROFINET disabled by default

EAN:

4779051841370

Stock:
Replacement period:
Packing Unit:

0 Stk.
From central warehouse

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 116.85
5	CHF 112.15
10	CHF 107.50

Price per piece:

CHF 116.85

Total price:

CHF 116.85 Price excl. VAT
and shipping costs

CHF 126.31 Price incl. VAT
excl. Shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

MANAGED SWITCH

L2 mit zusätzlichen L3-Funktionen für erweiterte Managementmöglichkeiten

PROFINET & MEHR

Unterstützt PROFINET für die automatisierte Datenverarbeitung sowie weitere Protokolle wie EtherNet/IP und MRP

ETHERNET & SFP

8 x Gigabit Ethernet Ports und 2 x SFP Ports für Glasfaserkommunikation

WitchOS

Teltonika Networks OS für Switches, intuitiv gestaltet für unbegrenzte Konfigurationen

RMS

Kompatibel mit dem Teltonika Remote Management System

System Characteristics

RAM
128 MB, DDR3
FLASH storage
16 MB serial flash

Performance Specifications

Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
Power consumption
Idle: < / Max: 6 W

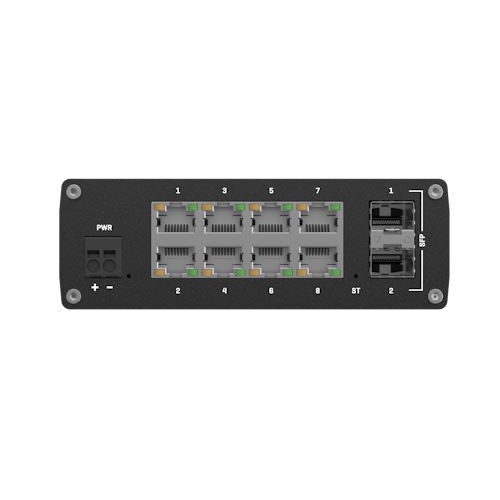

Physical Interfaces

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket

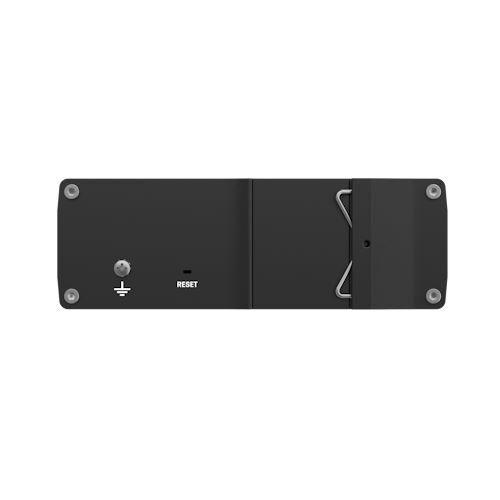

Reset
Reboot/User default reset/Factory reset button
Other
1 x Grounding screw

Physical Specification

Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
615 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

Regulatory & Type Approvals

Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH

Ethernet

ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

Services

EtherNet/IP
Yes
PROFINET (class B)
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

Network

MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security

Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block

QoS

QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping

Diagnostics

Tools
Cable diagnostic, ping, traceroute, nslookup

API

Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Firmware / Configuration

WEB UI
pdate FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system
WitchOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
