EME No.: 045623 Part No.: TRM282TRM282AAAAA0

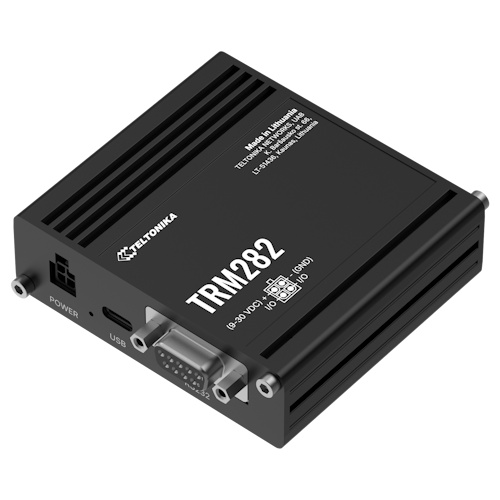

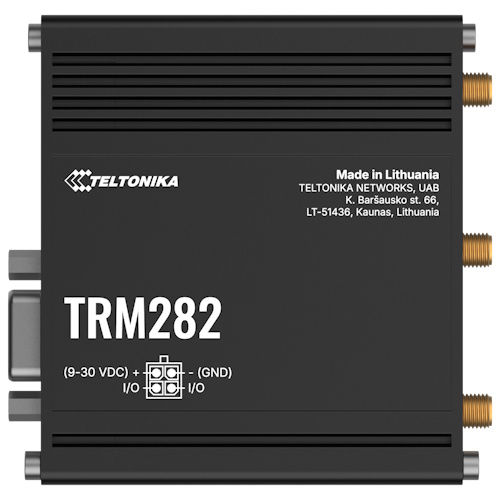

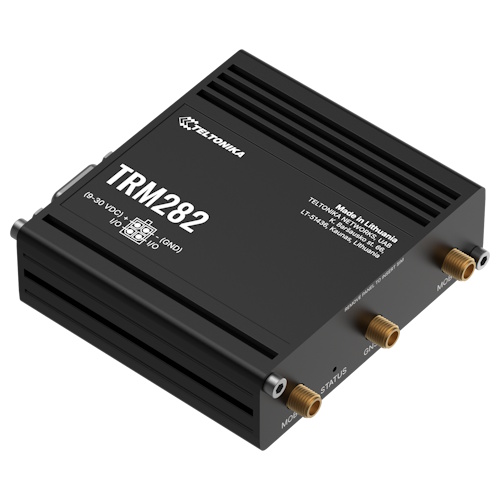

TRM282 Industrial Industrial Cellular Modem

Manufacturer:

TELTONIKA

Specification:

The TRM282 is a global 4G modem designed for industrial applications and IoT projects worldwide, offering reliable global Telit LTE Cat 4 connectivity. Equipped with USB and RS232 interfaces, it enables seamless integration with modern devices and legacy serial systems without system redesign. Integrated GNSS and digital inputs and outputs extend functionality beyond basic data communication, while two external antennas ensure stable operation even in demanding environments.

EAN/GTIN:

4779051841851

Stock:
Replacement period:
Packing Unit:

2 Stk.
In stock (CH 1-2 D)

1 Stk.

Graduated prices:

Stück	Preis
1	CHF 85.00
10	CHF 81.00
25	CHF 78.00
50	CHF 76.00

Price per piece:

CHF 85.00

Total price:

CHF 85.00 Price excl. VAT
and shipping costs

CHF 91.89 Price incl. VAT
excl. Shipping costs

Quantity:

- +

Add to cart

Spec. price

Data Sheets:

Data Sheet

Brochures:

Brochure

Wiki Knowledge Base:

Firmware, Änderungsprotokolle, Zertifikate und Anleitungen

Link to manufacturer website

Description Properties Technical Data

Global LTE

Gewährleisten Sie eine zuverlässige globale Konnektivität mit dem Telit Cat 4-Modul

Duale Schnittstellen

Moderne und ältere Geräte lassen sich nahtlos über USB und RS232 verbinden

Integriertes GNSS & DI/DO

Erweitern Sie die Anschlussmöglichkeiten mit integriertem GNSS und digitalen Ein-/Ausgängen

2 x mobile antennas

Verbesserung der Signalstabilität in industriellen Umgebungen

Power

Connector
1 x 4-pin industrial DC power socket
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Input voltage range
4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max USB Type-C: 5 VDC
Power consumption
Idle: < 0.4 W, Max: < 4 W

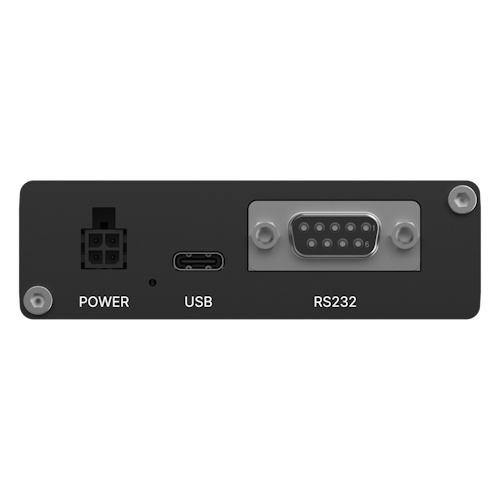

Physical Interfaces

Status LEDs
1 x Power LED, 1 x Status LED
SIM
1 x SIM slot (Mini SIM - 2FF, internal SIM holder), 1.8 V/3 V
Power
1 x 4-pin power connector
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

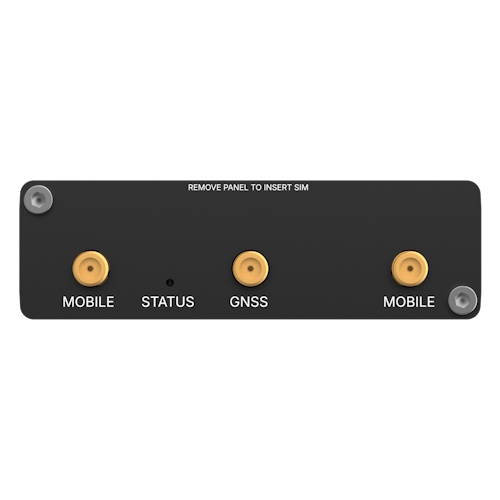

Antennas
2 x SMA for Mobile, 1 x SMA for GNSS
Other
1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification

Casing material
Full aluminum housing
Dimensions (W x H x D)
83 x 25 x 85.8 mm
Weight
171 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30

TRM SOFTWARE

Management Software
Windows Connection Manager, Modem Manager (Linux)
USB Driver
Windows 7/8/8.1/10/11, Linux >5.8, Android 11, 12, 13, 14, 15
RILGNSS Driver
Android 11, 13, 14
RIL Driver
Android 11, 12, 13, 14, 15
ECM Driver
Linux >5.8
QMI_WWAN Driver
Linux >5.8

Regulatory & Type Approvals

Regulatory
CE, UKCA, CB, RCM, FCC, IC, WEEE, EAC, UCRF

Mobile

Mobile module
4G (LTE) – LTE Cat 4 150Mbps DL, 50Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release
Release 8

Compatible accessories

Accesories

PR5MEC11 COMPACT DIN RAIL KIT

DIN rail holder for Teltonika products

Antennas

PR1KC647 5G COMBO MIMO MOBILE ROOF SMA ANTENNA

The Teltonika PR1KC647 antenna is designed for robust connectivity and supports both LTE and 5G networks. It features an IP67 and IP69K rating, ensuring protection against dust and water ingress, making it ideal for a variety of environments. With omnidirectional directivity and a gain of 4.7 dBi, this antenna improves signal reception and transmission in a frequency range of 600 to 6000 MHz, ensuring reliable cellular communications. Linear polarization and MIMO technology enhance performance, especially in challenging conditions. Suitable for roof mounting or screw mounting, this antenna is versatile and easy to install, providing users with efficient wireless communication options.
